8Nm Brake High Power Damping Steering Wheel Robot Drive Wheels Agv Drive Unit

PCEC Explosion Proof Certified High Power Damping Steering Wheel With 8 Nm Brake


AGV has been widely used in different fields with its advantages of high degree of automation, sensitivity and safety. However, with the continuous changes in the application environment of agv, customers' requirements for agv are constantly changing, especially in some special application places, such as product processing and manufacturing, which may produce flammable and explosive gases, steam and dust.

These flammable gases or dusts are mixed with air and can easily form explosive mixtures. When the agv body is transported and driven in this dangerous working environment, it must have high explosion-proof performance. As one of the important core components of the agv body, the steering wheel device should also be designed to meet the explosion-proof requirements.

Our company provides an explosion-proof steering wheel system, which can realize the long-term safe, reliable and high-efficiency work of agv transport vehicles in the environment of explosive gas and dust hazardous conditions. Explosion-proof treatment caused major safety accidents.

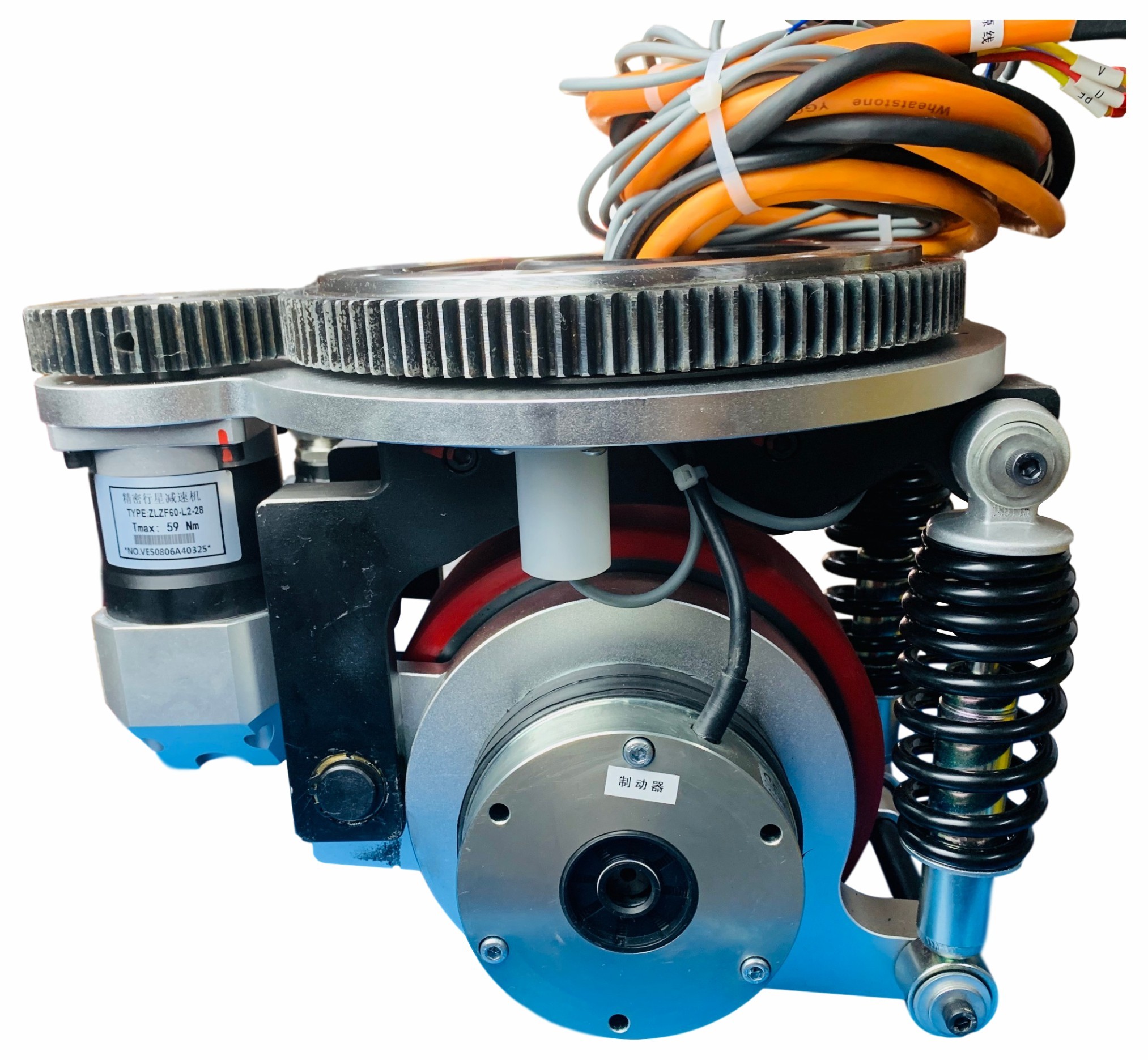

The steering drive assembly includes an explosion-proof motor for steering drive, a steering reducer, an adapter plate for the steering reducer, and a steering pinion. The explosion-proof motor for steering drive is connected with the steering reducer to drive the steering reducer to rotate, and the steering reducer is connected to the steering gear. The reducer is connected with an adapter plate, the steering reducer is connected with the mounting plate with an adapter plate, the steering reducer drives the steering pinion to rotate, and the steering pinion meshes with the outer ring gear of the slewing bearing to realize the steering movement of the steering wheel device.

The driving component includes an explosion-proof motor for driving, a speed reducer for driving, and a conductive polyurethane wheel; the explosion-proof motor for driving is connected to the speed reducer for driving through a flat key and a keyway to drive the speed reducer to rotate, and the conductive polyurethane wheel is connected to the speed reducer for driving. The reducer is connected to realize the driving motion of the steering wheel device.
